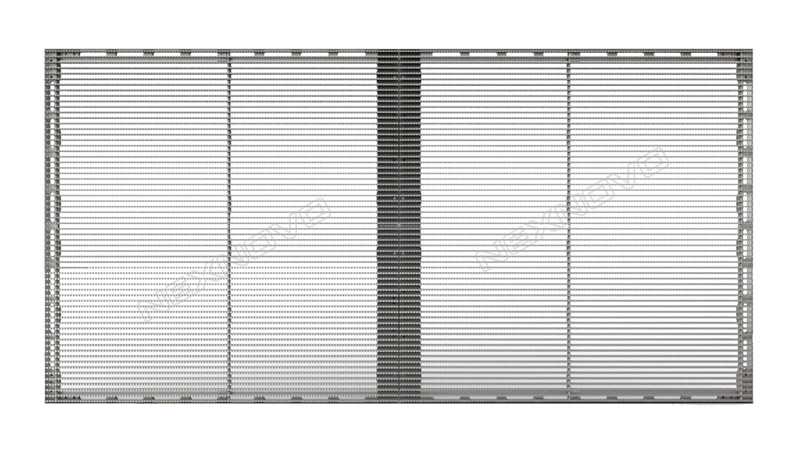

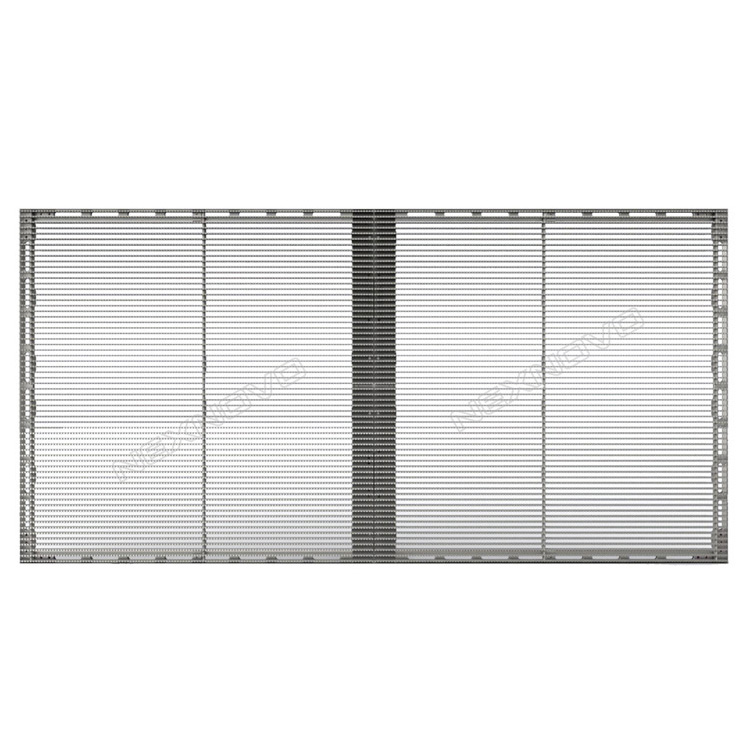

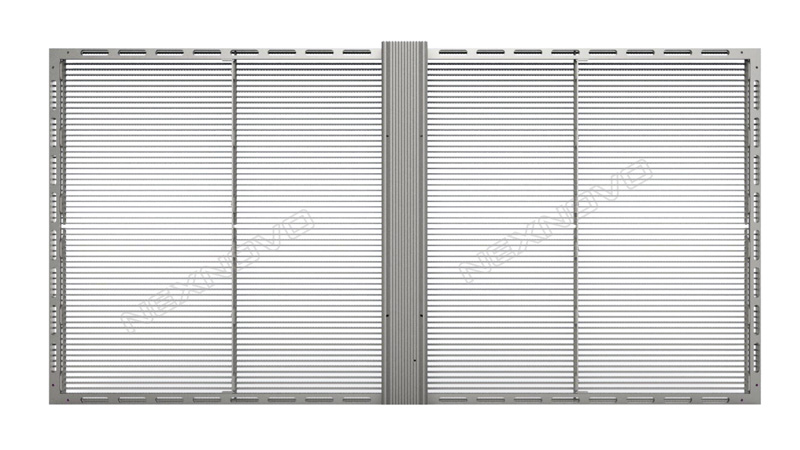

NEXNOVO - XRW Series
TECHNICAL SPECIFICATIONS
| Model | XRW2.6 | XRW3.3 | XRW3.9 | XRW3.9 | XRW8 | XRW10 | XRW10 | XRW16 | XRW16 | XRW20 |
|---|---|---|---|---|---|---|---|---|---|---|
| LED | SMD1515 | SMD1515 | SMD1515 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD1921 | SMD2727 | SMD2727 |
| Resolution (dot/m2) | 67454 | 42630 | 32768 | 32768 | 16384 | 9216 | 9216 | 4096 | 4096 | 2304 |
| Pixel Pitch (W X H)(mm) | 2.61 x 5.68 | 3.38 x 6.94 | 3.91 x 7.82 | 3.91 x 7.82 | 7.82 x 7.82 | 10.42 x 10.42 | 10.42 x 10.42 | 15.63 x 15.63 | 15.62 x 15.62 | 20.83 x 20.83 |
| Cabinet size (W X H) (mm) | 1000 x 500(1000) | 1000 x 500(1000) | 1000 x 500(1000) | 1000 x 500(1000) | 1000 x 500(1000) | 1000 x 500(1000) | 1000 x 500(1000) | 1000 x 500(1000) | 1000 x 500(1000) | 1000 x 500(1000) |
| Cabinet Resolution | 384 x 88(196) | 296 x 72(144) | 256 x 64(128) | 256 x 64(128) | 128 x 64(128) | 96 x 48(96) | 96 x 48(96) | 64 x 32(64) | 64 x 32(64) | 48 x 24(48) |
| Brightness (CD/m2) | 5000-5500 | 5000-5500 | 5000-5500 | 5500-6000 | 5000-5500 | 5000-5500 | 7000-7500 | 3000-3500 | 7000-7500 | 5000-5500 |
| Transparency | > 72% | > 78% | > 80% | > 74% | > 80% | > 85% | > 75% | > 90% | > 85% | > 88% |
