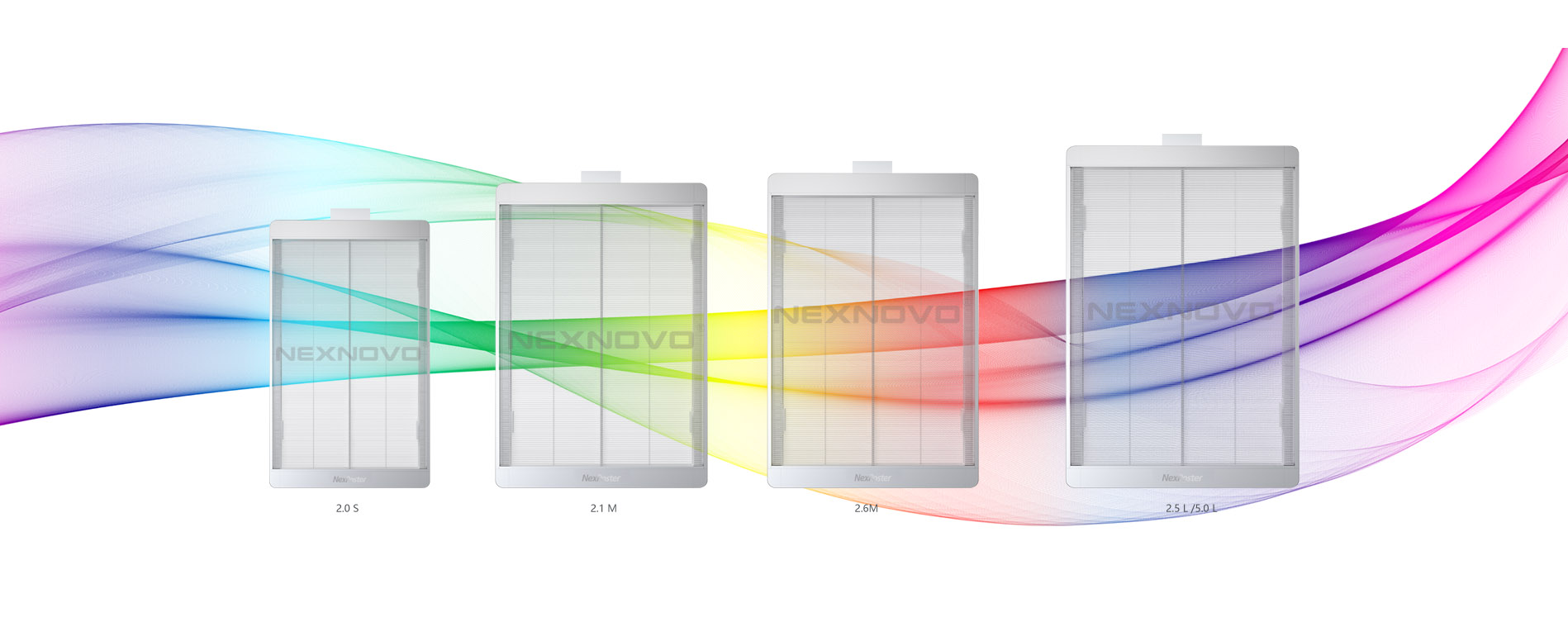

NEXNOVO - NP Series
TECHNICAL SPECIFICATIONS
| Model | NP2.05 | NP2.1M | NP2.6M | NP2.5L | NP5.0L |
|---|---|---|---|---|---|
| LED | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 |
| Resolution (dot/m2) | 59904 | 98304 | 59904 | 86016 | 43008 |
| Pixel Pitch (W X H)(mm) | 2.05x5mm | 2.12x4.7mm | 2.6x5.9mm | 2.5x5.71mm | 5.0x5.7.1mm |
| Cabinet size (W X H) (mm) | 670x1120x49mm | 841x1360x49mm | 841x1292x49mm | 990x1440x49mm | 990x1440x49mm |
| Cabinet Resolution | 312x192 | 384x256 | 312x192 | 384x224 | 192x224 |
| Brightness (CD/m2) | 4500-5500 | 4500-5500 | 4500-5500 | 4500-5500 | 4500-5500 |
| Transparency | 68% | 66% | 73% | 72% | 72% |
